Acoustic Zooplankton Fish Profiler (AZFP)
AZFP-nano
AZFP-pico
Learn more about ASL's
product distribution and service
partnerships
An autonomous, calibrated, scientific echosounder with the unmatched combination of multiple frequency operation, low power consumption, and long endurance that fits your budget.
Long-term, multi-frequency ecosystem monitoring
Monitoring of ecosystem changes including fish and zooplankton distribution at remote sites
Standard size, suitable for multi-year autonomous deployments. AUV options available.
12 month deployments are typical, and may be extended to 18+ months
Choose up to four frequencies: 38, 67.5, 120, 200, 333, 455, 769, and 1250 kHz. Non-standard frequency options are available

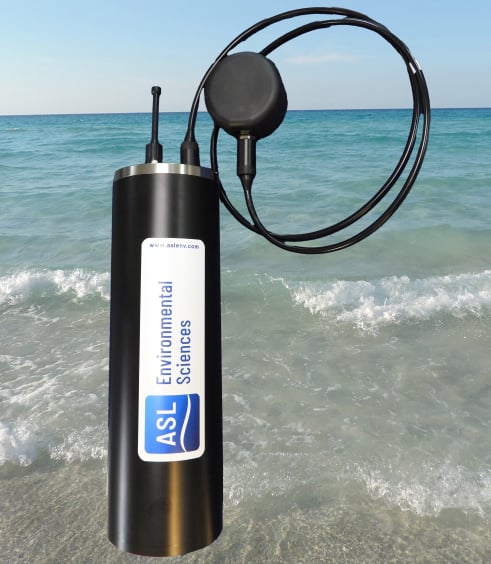

The AZFP-nano is a compact, lightweight, single frequency scientific echosounder. A miniaturized version of the AZFP, it is easily portable and well suited for challenging environments. The AZFP-nano is powered by standard D-cell batteries, while the AZFP-pico is powered externally.
Multi-week single-frequency ecosystem monitoring
Deployment from small vessels such as kayaks, attachment to CTD rosettes, integration with uncrewed vehicles
A miniaturized version of the AZFP, it is easily portable and wellsuited for applications in challenging environments where size and weight are important considerations. 200 m rating - Acetal pressure case: 4.90” (124mm) OD x 15.15” (385mm) long. 2000 m rating - Titanium pressure case (external power): 3.50” (89mm) OD x 10.70” (271mm). 4000 m Titanium pressure case: 4.90” (124mm) OD x 14.74” (374mm) long.
Battery-powered for multi-week deployment using common D-cell batteries
200 kHz. Stay tuned for new frequency options

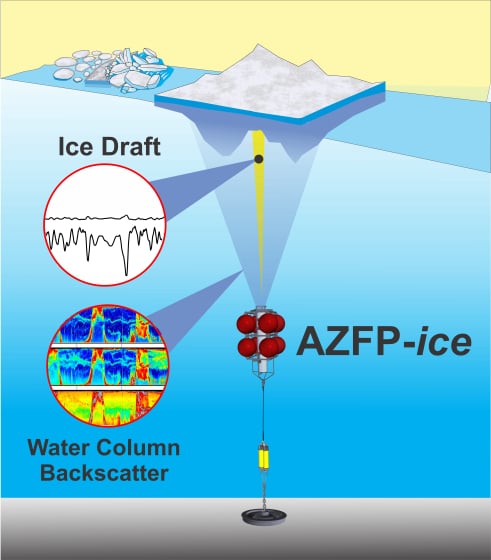

The Acoustic Zooplankton Fish Profiler-ice (AZFP-ice) combines the AZFP's abilities to monitor the presence and abundance of zooplankton, fish, suspended sediments and bubbles within the water column, along with the Ice Profiling Sonar's (IPS) ability to measure ice draft. A powerful tool for scientific research and environmental monitoring in oceans, lakes, and rivers.
Long-term, multi-frequency ecosystem monitoring
Monitoring of ecosystem changes including fish and zooplankton distribution at remote sites
Standard size, suitable for multi-year autonomous deployments or AUV mounting
Extended battery for long deployments
Choose up to four frequencies: 38, 67.5, 120, 200, 333, 455, 769, and 1250 kHz. Non-standard frequency options are available

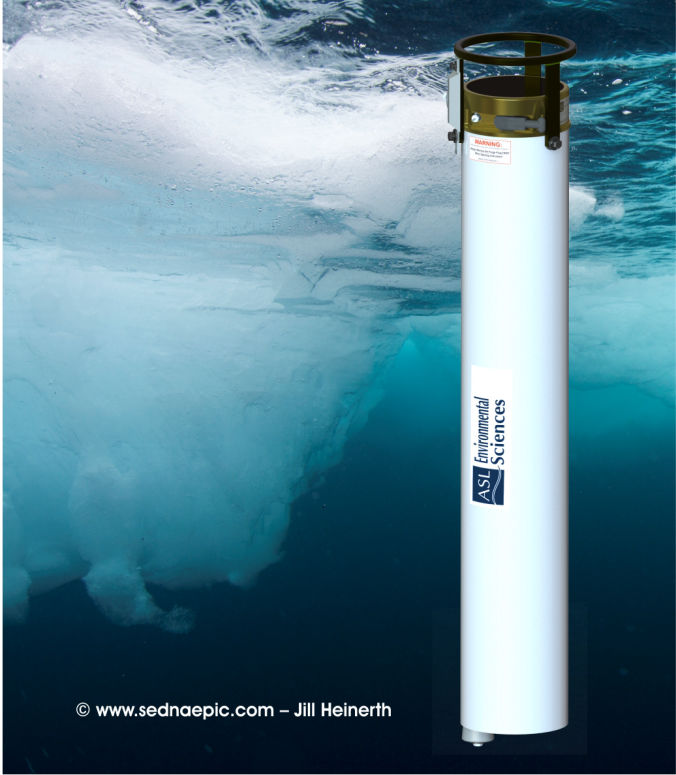

An upward-looking sonar device, mounted on the ocean floor, to accurately measure ice draft. Designed for long-term autonomous deployments in harsh polar environments.
Long-term, multi-frequency ecosystem monitoring
Monitoring of ecosystem changes including ice draft and water column features
Pressure case is 170 mm diameter x 1000 mm long designed for robust multi-year deployments
Extended battery for long-term operations
Single or multi-frequency options depending on deployment needs

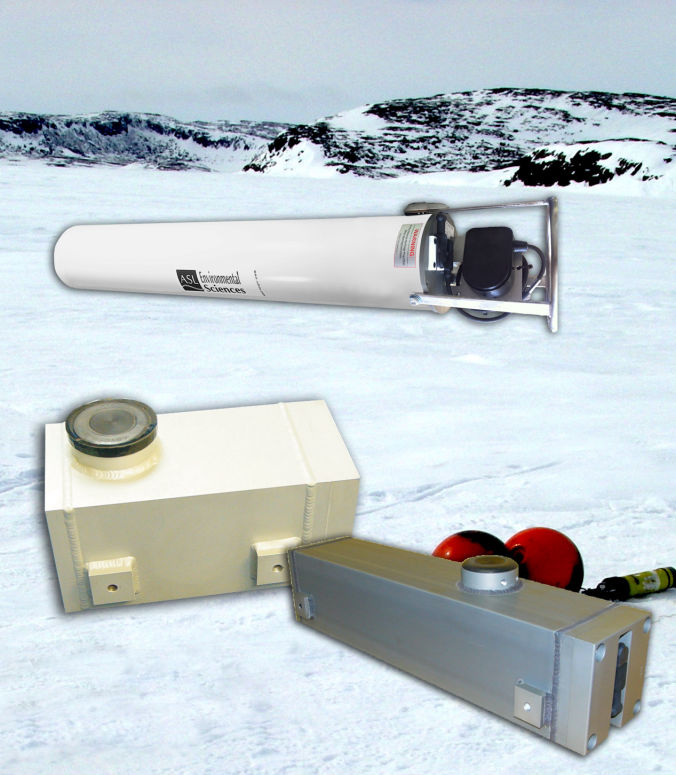

An upward-looking sonar device, mounted on the lake, river, or ocean floor to accurately measure ice draft in shallow water environments.
Long-term, multi-frequency ecosystem monitoring
Monitoring ecosystem changes including ice draft and water column features
Compact, suitable for shallow water autonomous deployments
Extended battery for long-term operations
Single or multi-frequency options depending on deployment needs
ASL provides many solutions for your mooring needs. Whether you’re deploying a single instrument or a whole suite, we have a host of designs to suit your requirements.
Long-term, multi-frequency ecosystem monitoring
Monitoring of ecosystem changes including fish and zooplankton distribution at remote sites
Standard size, suitable for multi-year autonomous deployments or AUV mounting
Extended battery for long deployments
Choose up to four frequencies: 38, 67.5, 120, 200, 333, 455, 769, and 1250 kHz. Non-standard frequency options are available
The ASFM measures discharge measurements in hydroelectric power plant intakes.
Long-term, multi-frequency ecosystem monitoring
Monitoring of ecosystem changes including fish and zooplankton distribution at remote sites
Standard size, suitable for multi-year autonomous deployments or AUV mounting
Extended battery for long deployments
Choose up to four frequencies: 38, 67.5, 120, 200, 333, 455, 769, and 1250 kHz. Non-standard frequency options are available
ASL Environmental Sciences Inc. is pleased to announce its product distribution and service partnership with TERAMARA (Formerly DASCO Equipment Inc). TERAMARA is the Canadian representative for several leading international ocean technology manufacturers, most notably Teledyne Marine and has predominantly operated in eastern Canada. ASL is a leading manufacturer and service firm in the ocean technology and oceanographic marketplace with its head office in Greater Victoria, BC. With this partnership, clients have access to over 75 years of oceanographic experience offering a complete range of oceanographic instruments and services under one umbrella. Here are some of the organizations that this partnership represents.
Teledyne Marine is a group of leading-edge subsea technology companies that are part of Teledyne Technologies Incorporated. It has evolved into an industry powerhouse, bringing imaging, instruments, interconnect, seismic, and vehicle technology together to provide total solutions to our customers.
DeepWater Buoyancy Inc. is the world’s largest producer of subsea buoyancy products for the oceanographic community and has a vast product line of buoyancy solutions for offshore oil and gas, energy and technology companies.
Valeport designs and manufactures instrumentation for the oceanographic, hydrographic and hydrometric communities. Its underwater sensors and profilers are used for environmental monitoring, water survey, defence, oil and gas, dredging, civil engineering and scientific research.
ASL is pleased to announce the addition of the Sofar Spotter metocean buoy to its oceanographic equipment product sales lineup. The Sofar Spotter metocean buoy provides real-time wave, wind, sea surface temperature and barometric pressure from a compact, solar powered, rugged designed buoy built to withstand the harshest conditions of the open ocean.
ANB Sensors of Cambridge United Kingdom, have developed a next generation calibration-free, solid-state, multi-parameter pH, conductivity and temperature sensor. Unlike other pH sensors that require frequent re-calibration, the ANB sensors uses a patented technology that automatically carries out in-situ calibrations throughout the deployment.
The WERA system (WavE RAdar) is a shore based remote sensing system using the over the horizon radar technology to monitor ocean surface currents, waves and wind direction.
